The solution of Manufacturing auto parts AGV car

Customer demand:

1: The main goal is to reduce the work intensity and workload of personnel and reduce labor costs;

2: Basic work flow: warehouse → wind shower room → line side buffer area → wind shower room → warehouse (empty box);

3: According to requirements, the recommended AGV is a double-drive bidirectional latent traction type AGV with a maximum weight of less than or equal to 500KG.

4: The charging mode is manual charging, and the method of towing the trailer is: automatic/manual;

Project scope: warehouse → wind shower room → line side buffer area transfer, the main transfer material is 1200 * 1000 * standard tray.

Pre-retrofit operation: Warehouse personnel use pallet trucks to transport full pallet material directly to the line.

Process flow:

The worker manually places the material on the material feeding point at the loading point; the AGV traction material enters the air shower room for air showering; the AGV traction material truck reaches the line side buffer area after the air shower is completed; the full material truck is taken off, at the other end of the AGV Hang up the empty material truck and press the release button; the AGV arrives at the air shower room again and again; after the air shower, the AGV traction truck returns to the warehouse loading point; manually hook the material truck to the other traction rod and then load it.

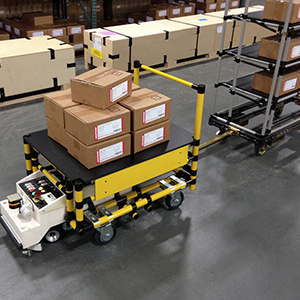

Name: Double-drive bidirectional latent traction type AGV (adding tail traction structure before and after AGV)

Product Description:

This AGV is a double-drive two-way latent traction AGV, which can tow at least 500KG of overweight cargo, and can move forward, backward, turn, and other two-way driving functions. The AGV sheet metal body is spray-coated and has a beautiful appearance, strong surface and corrosion resistance. This AGV is a latent traction type, which can automatically travel along the set route. The AGV lurks into the bottom of the material trolley. The electric traction pin automatically pulls the material trolley. After reaching the destination station, the material trolley is automatically removed. AGV and material trolley Automatic separation can realize the functions of automatic loading, unloading, handling, start and stop of AGV and material trolley to maximize the efficiency of the enterprise.
